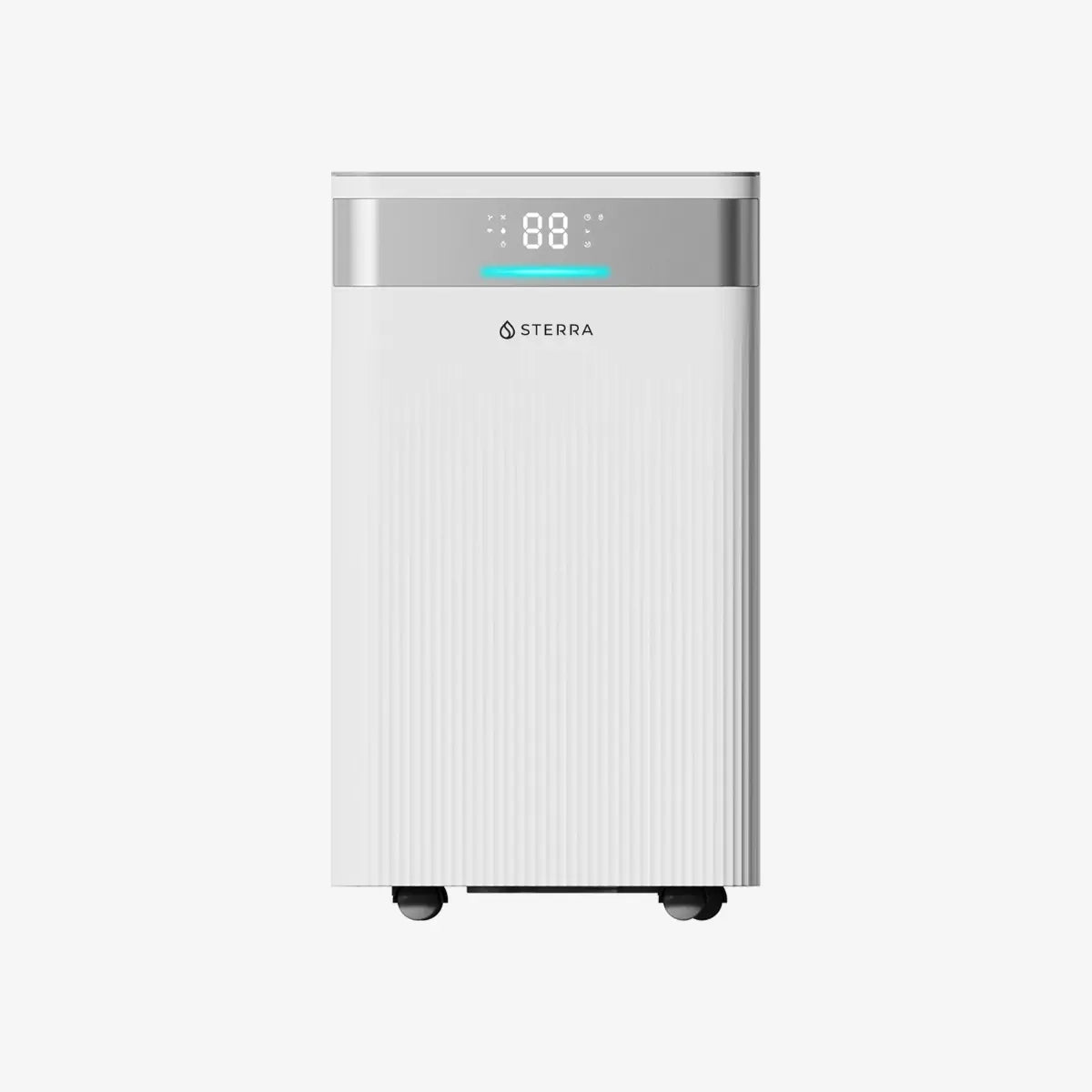

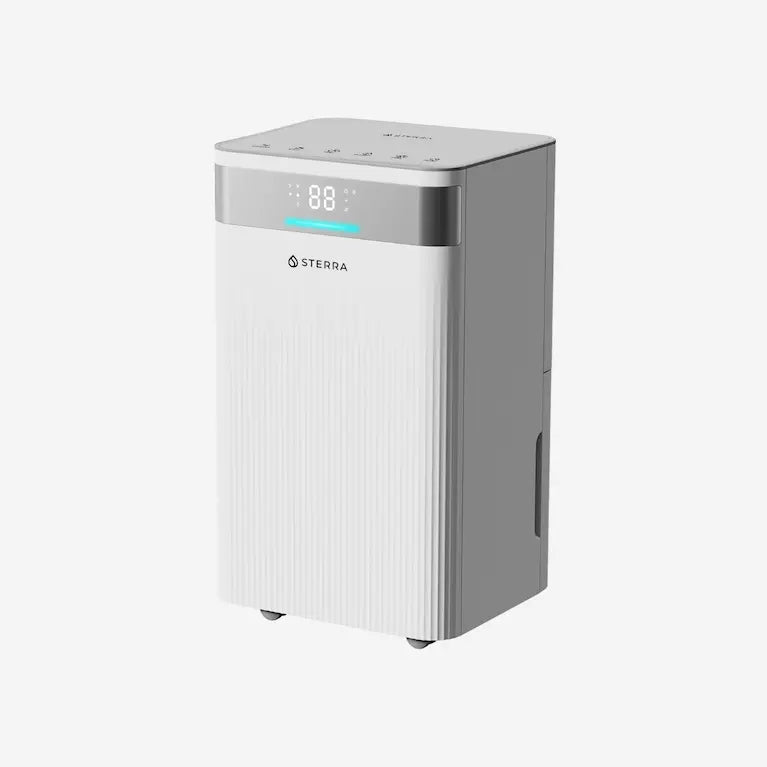

Sterra Ray™ Dehumidifier

Dimensions:

445mm x 255mm x 220mm

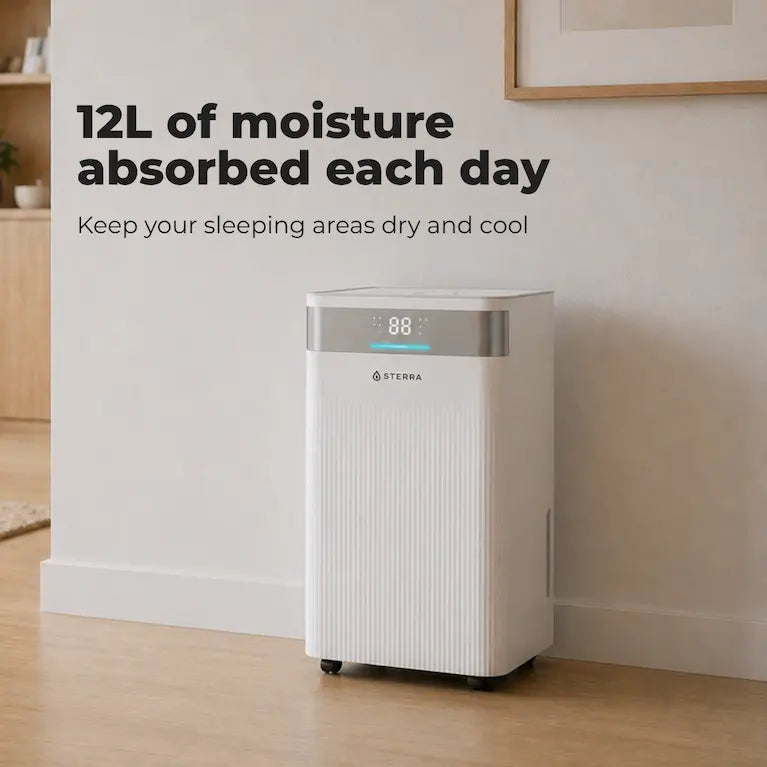

Extraction Rate:12 L/day (based on 30°C, 80% RH)
Water tank volume:2 L
Coverage area:Up to 18 m²
Humidity settings:30% to 80%
Modes:Auto Mode, Continuous Mode, Sleep Mode
Fan Speed:Low & High
Noise level:38 dB and below
Programmable Timer:0-24 hours
Rated Power:200 W
Net Weight:10 kg

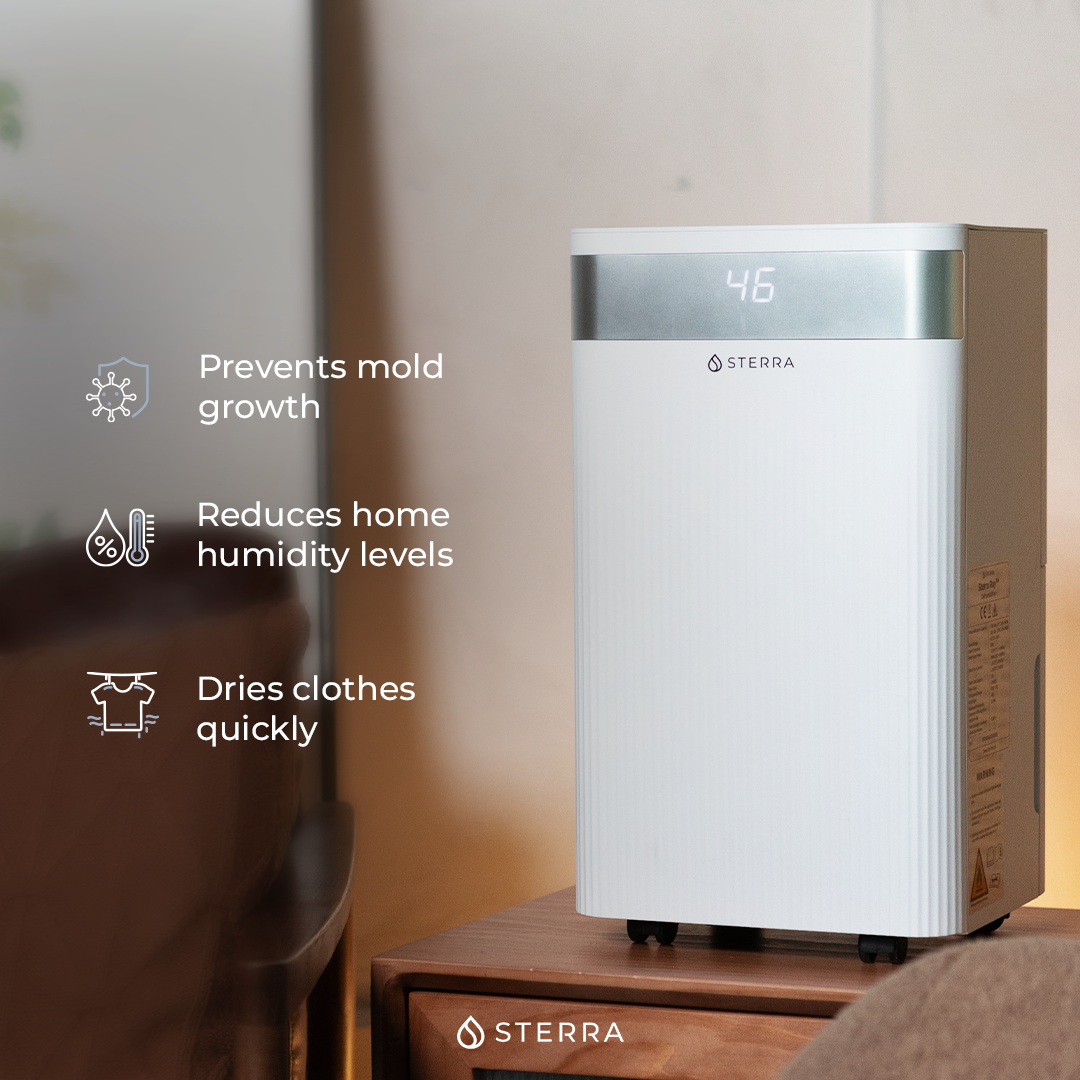

What is a Dehumidifier and why do I need one?

A dehumidifier reduces and maintains the level of humidity (moisture) in the air by drawing in air from the room, passing it over cool coils that condense moisture, and then releasing dry air back into the room. For Sterra Dehumidifiers, condensed moisture is collected in a tank.

Dehumidifiers help prevent problems like mold growth, mildew, and musty odors. It can also improve comfort and air quality by making the air feel slightly cooler and less sticky.

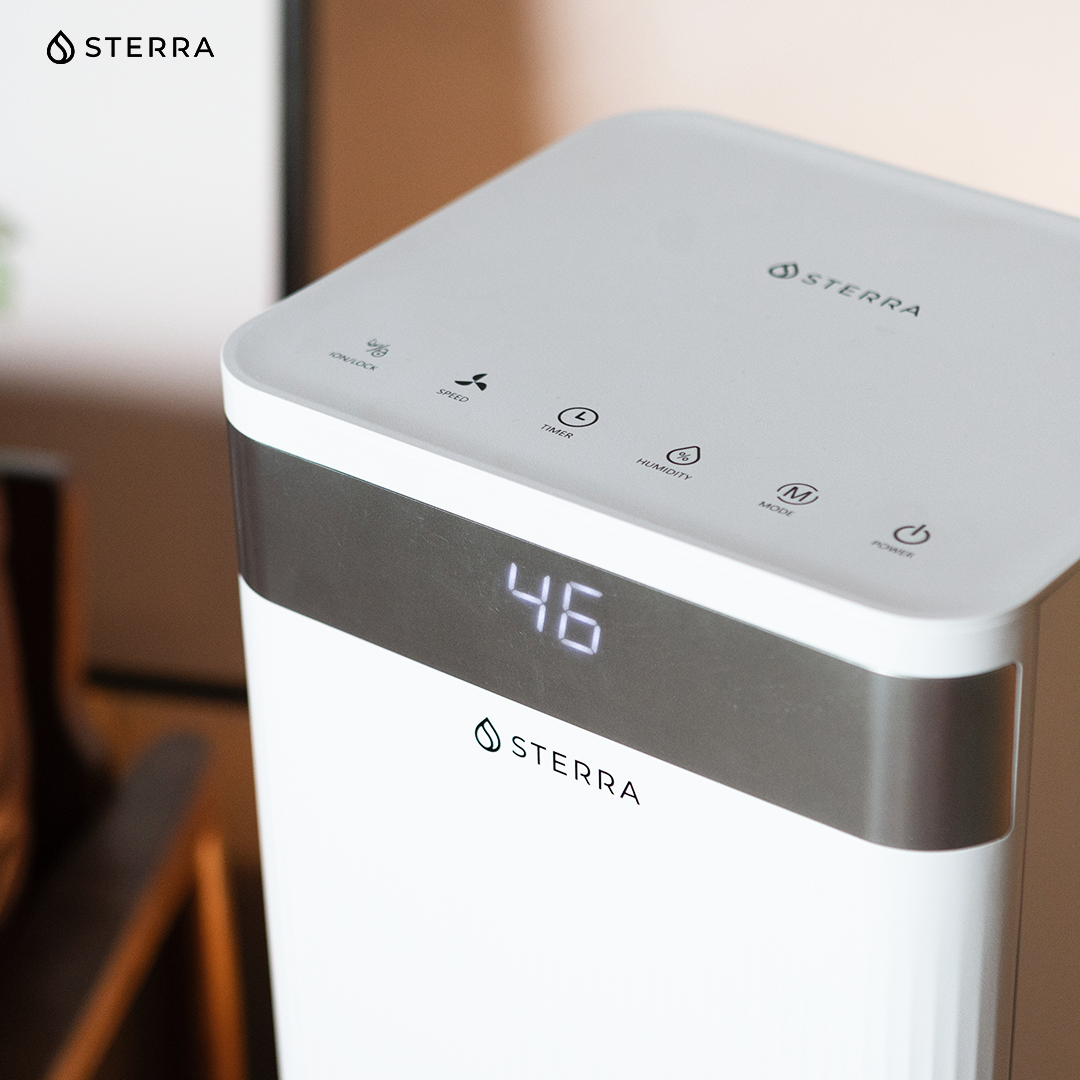

What does each color display mean?

Blue Color: The ambient humidity is 45% or less.

Green Color: The ambient humidity is over 45% but less than 65%.

Red Color: The ambient humidity is 65% or higher.

What are the 3 different modes of Sterra Ray?

Auto Mode: Automatically adjusts humidity based on the settings.

Continuous Drying Mode:  Operates continuously regardless of ambient humidity. You can adjust the fan speed but not the humidity setting while on this mode

Sleep Mode: If the machine stays idle for 10 seconds, the power and sleep indicators turn dark and the digital screen and all the other indicators will turn off.

Does Sterra Ray have a timer feature?

Yes, you can set the working time for the dehumidifier. The machine will automatically turn on/off within the set time with a timer range of 1 hour to 24 hours.

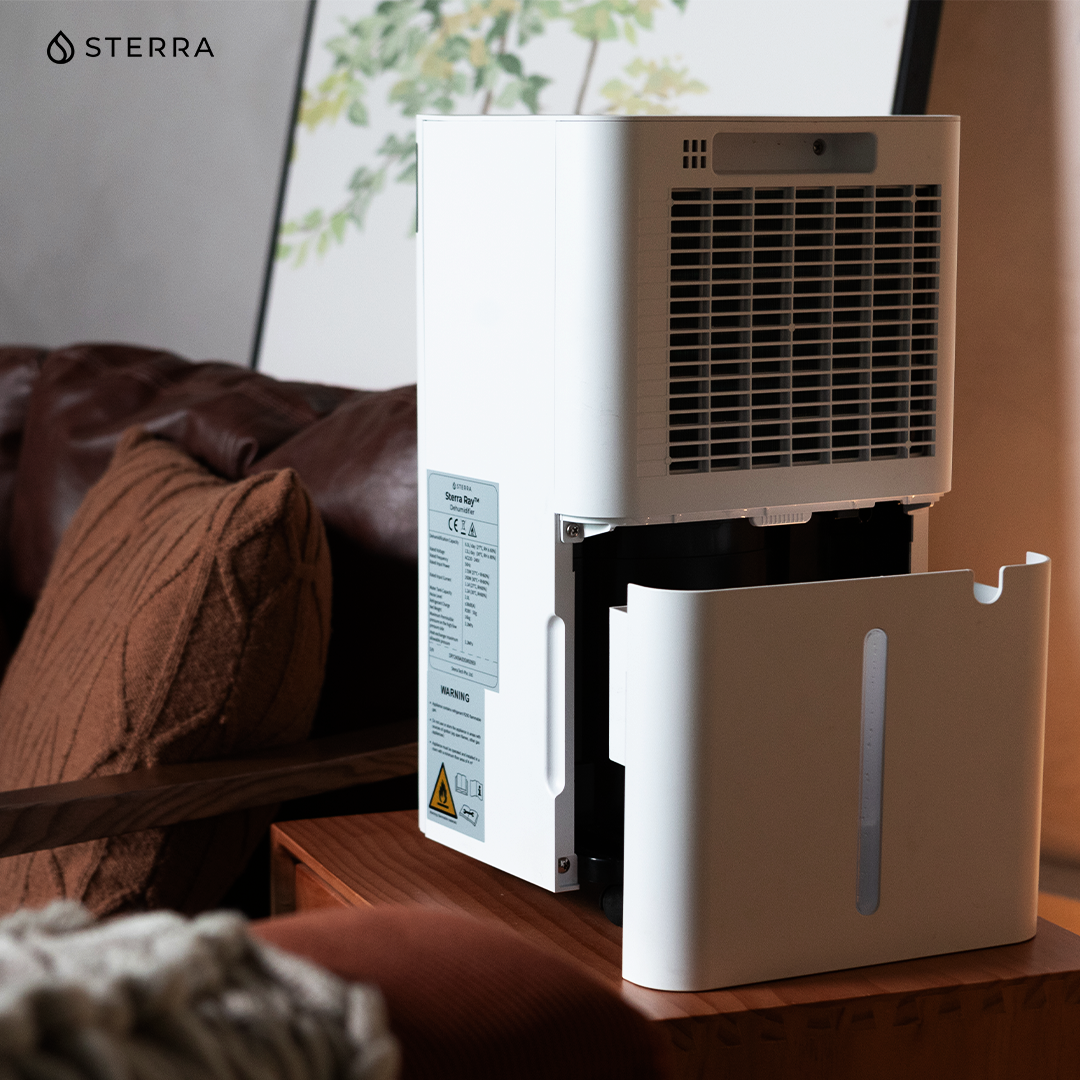

What happens when the water tank is full?

When the tank is full, the display screen will show "FL" with 5 beep sounds at the same time.

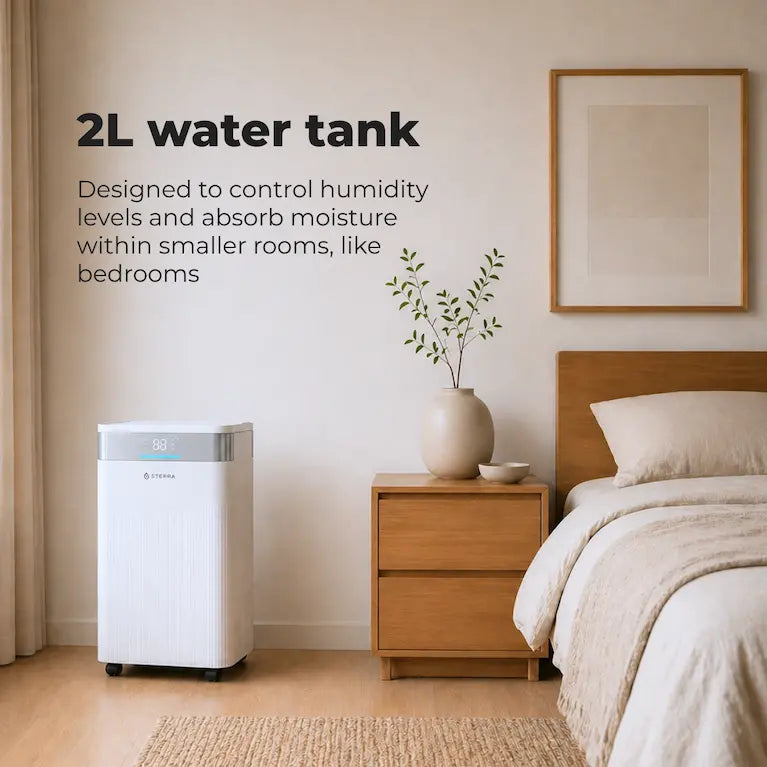

What is the tank capacity of Sterra Ray?

Sterra Ray has a water tank capacity of up to 2 liters.

What is Sterra Ray’s working temperature?

It works or operates in areas with ambient temperatures ranging from 5°C to 35°C.

What is Sterra Ray’s working humidity?

When the ambient humidity is too low (less than 20%), the unit shuts down for self-protection.

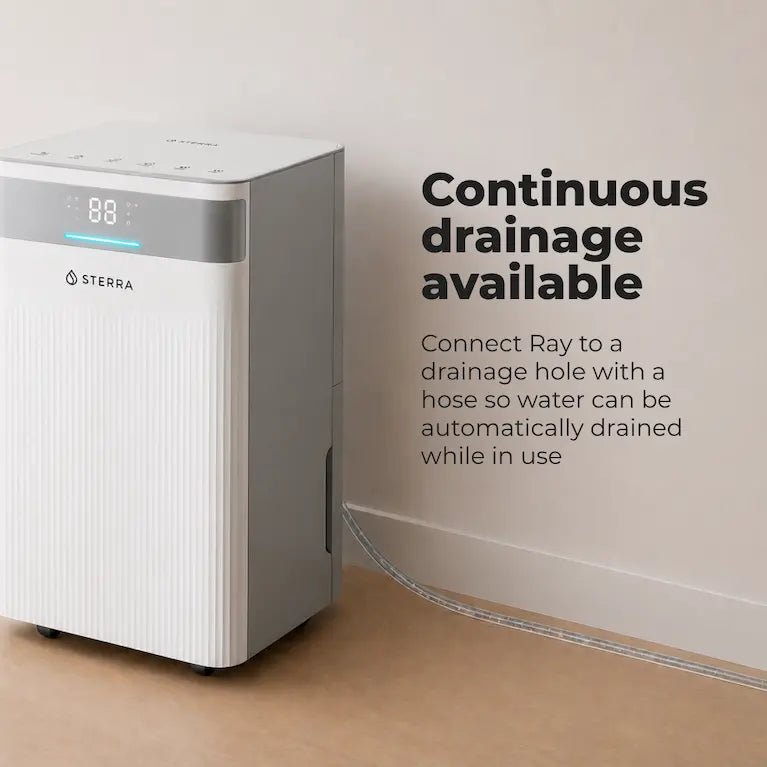

What is the difference between manual draining and continuous draining?

Manual Draining: The user must manually remove the tank to drain the water.

Continuous Draining: A drain hose is used to continuously direct water to a toilet, drainage area, or bucket, eliminating the need to manually remove the tank.

Can I buy an extra air filter?

We do not sell extra air filters. However, the air filter does not get used up unlike air purifiers. Proper maintenance steps include:

• The air filter is removable for easy cleaning.
• Clean the air filter every 2 weeks.
• Do not operate the unit without an air filter to prevent contamination.
• Gently remove the dust on the air filter surface using a vacuum cleaner. If the air filter is very dirty, wash it with clean water and a soft detergent. Let it dry before reinserting.

What is the coverage area of Sterra Ray?

It covers up to 18 m².

Is Sterra Ray noisy?

It operates at a noise level of 38dB and less which is around the same sound as a working domestic fridge.

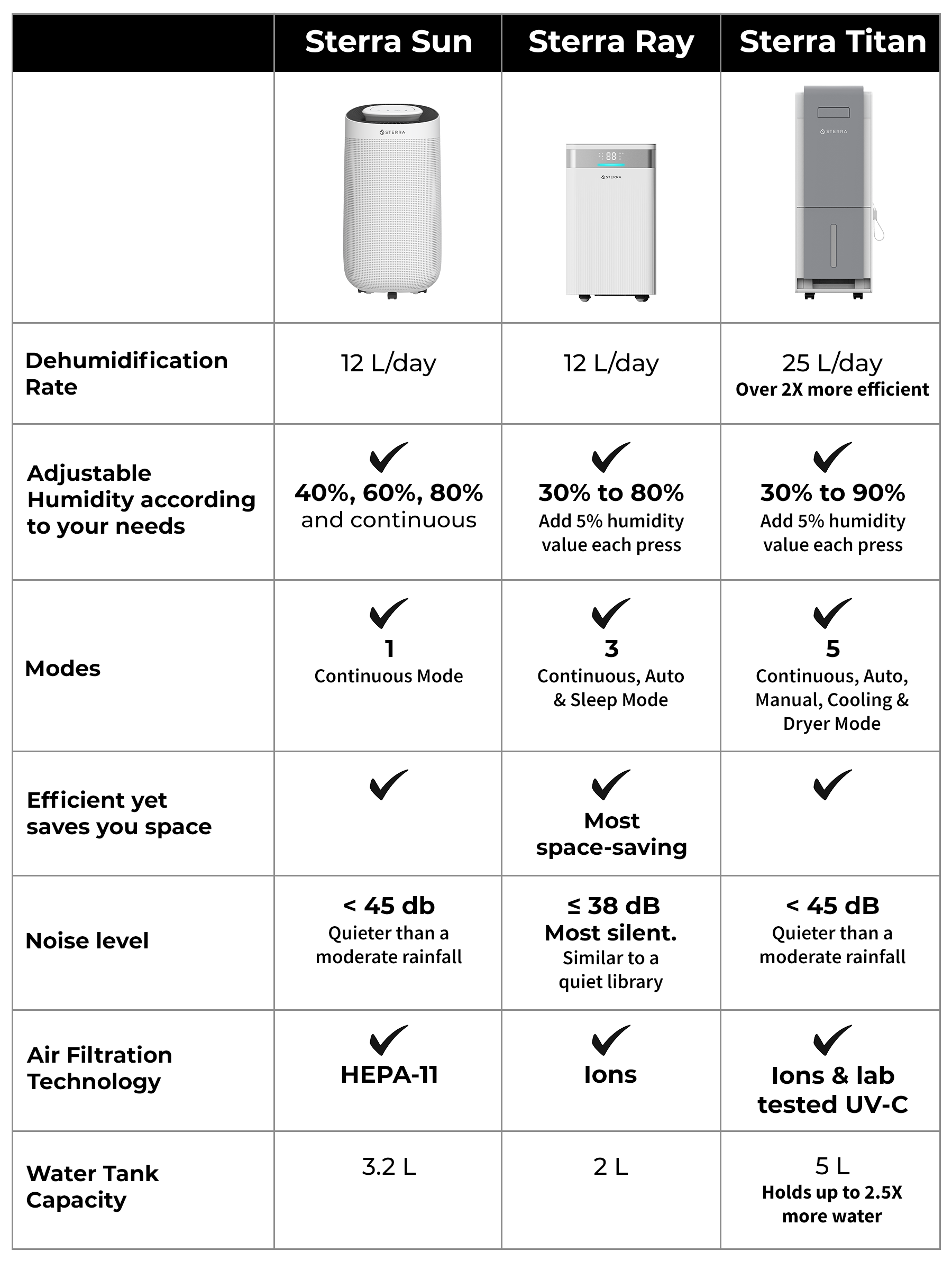

Dehumidification Rate

• Sterra Ray: 12L/Day
• Sterra Sun: 12L/Day
• Sterra Titan: 25L/Day

Adjustable Humidity Levels

• Sterra Ray: 30% to 80% (Add 5% humidity value each press)
• Sterra Sun: 40%, 60%, 80%, and continuous
• Sterra Titan: 30% to 90% (Add 5% humidity value each press)

Modes

• Sterra Ray: 3 modes (Continuous, Auto, Sleep)
• Sterra Sun: 1 mode (Continuous)
• Sterra Titan: 5 modes (Continuous, Auto, Manual, Cooling, Dryer)

Air Filtration Technology

• Sterra Ray: Ions
• Sterra Sun: HEPA-11
• Sterra Titan: Ions & lab-tested UV-C

Water Tank Capacity

• Sterra Ray: 2L
• Sterra Sun: 3.2L
• Sterra Titan: 5
